Method for Selecting Model 3051----------

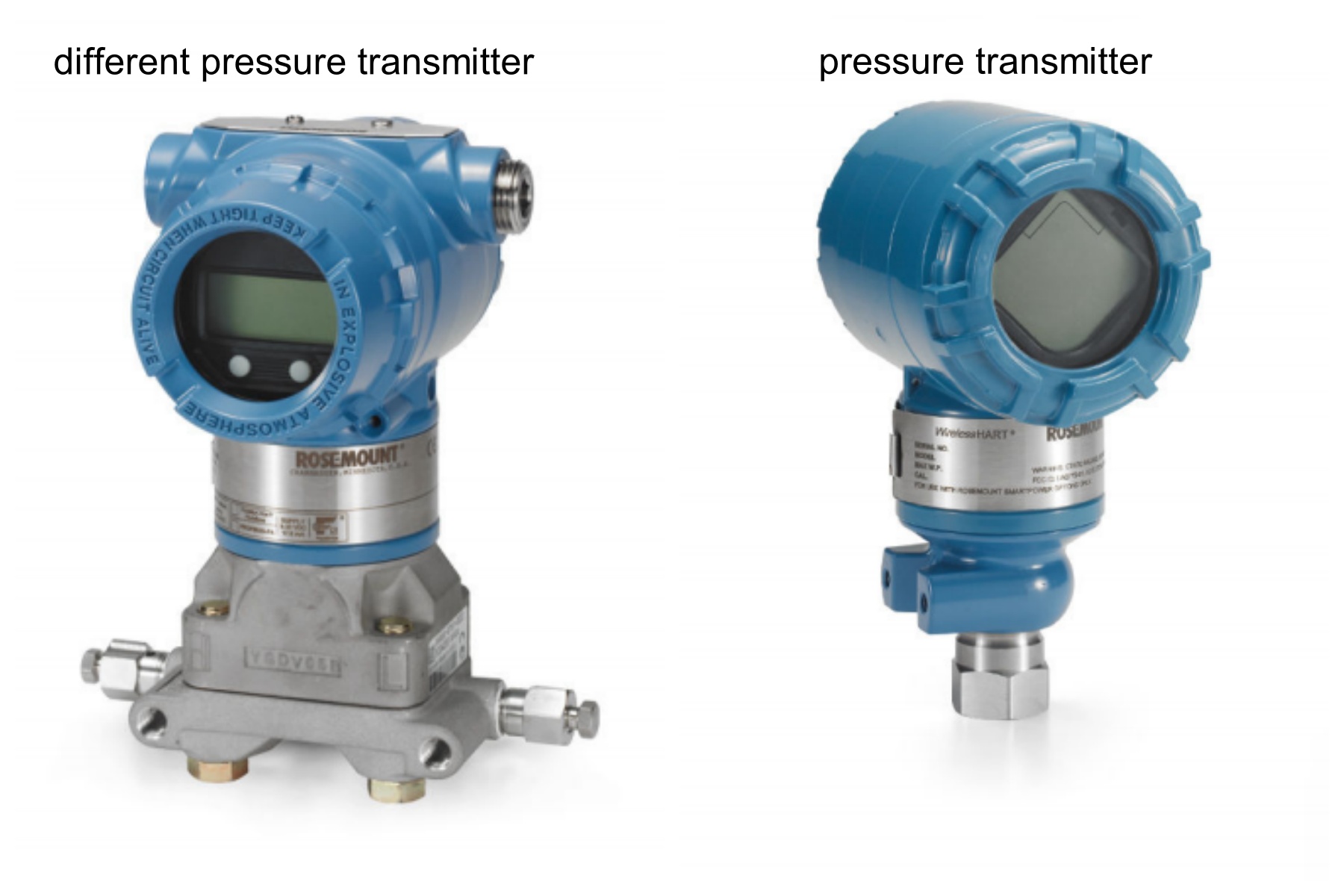

1.Choose differential pressure transmitter or pressure transmitter----------

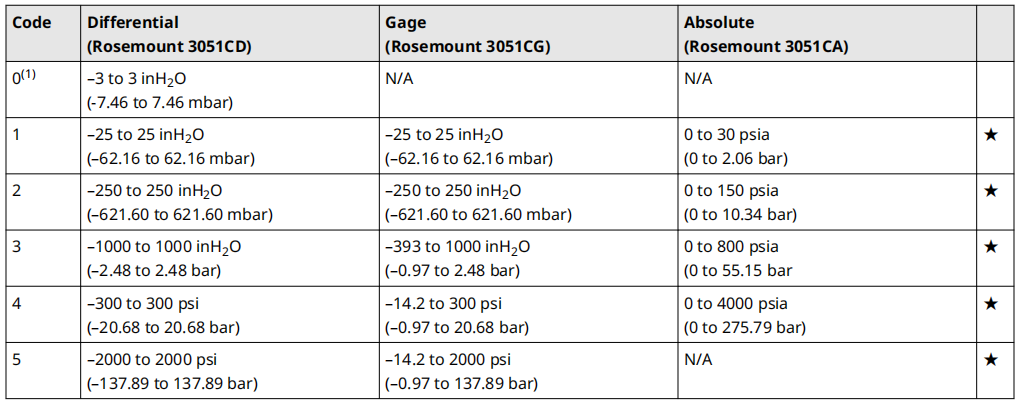

2.Pressure range----------
Select the corresponding code based on the pressure range of the pipeline you are measuring

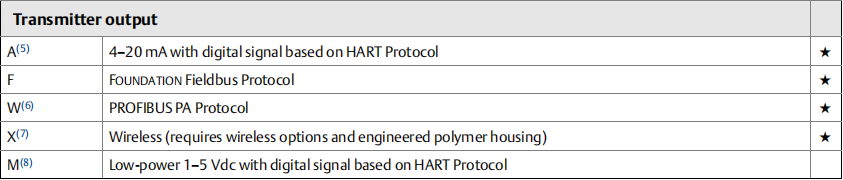

3.Transmitter output----------
The output of the transmitter, commonly known as Hart 4-20mA and F protocol, FOUNDATION Fieldbus Protocol

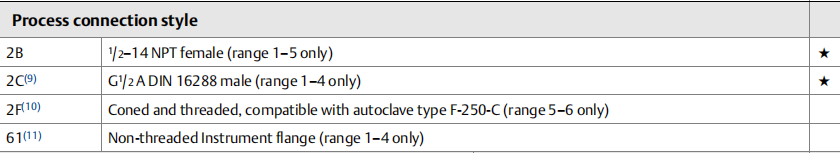

4.Process connection style----------

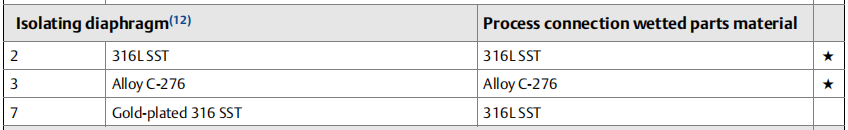

5.Measurement medium----------

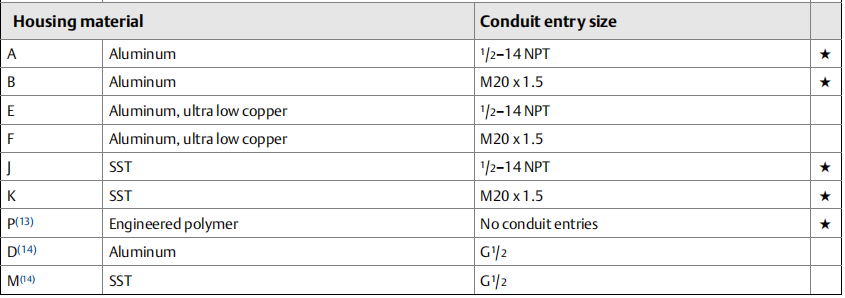

If the measuring medium is corrosive, the diaphragm material needs to be selected from corrosion-resistant materials such as alloys. The transmitter housing needs to be made of stainless steel.
If the measuring medium is non corrosive, the diaphragm material needs to be 316 stainless steel diaphragm. The transmitter housing only requires a regular aluminum alloy housing.
Based on the above information, including pressure range, output, process connection, and measurement medium, the most basic model can be confirmed. At the same time, your environmental conditions and safety certification need to be selected according to your needs.
We have good price for the 3051 series transmitter , welcome to your inquiry .
