Original Schneider Insulation Monitoring Instrument IMD-IM400
Schneider Insulation Monitoring Instrument
IMD-IM400
Original Schneider IMD-IM400
Cut size: 112 mm (width) x 148 mm (height)
Applicable system: IT ungrounded system (AC/DC/hybrid system)
Original Schneider Insulation Monitoring Instrument IMD-IM400
IMD-IM400 is a high-performance insulation monitoring instrument developed by Schneider for IT ungrounded systems. It is used in large power grids/strong interference environments and can simultaneously monitor insulation resistance and leakage capacitance. It is compatible with AC/DC hybrid systems and supports remote monitoring and multi-level alarms. Xi'an Lilu Trading Co., Ltd. has very competitive prices and looks forward to your inquiry.
IMD-IM400 Technical Specification Table
|
Parameter Category |
Detailed Specification |
|
Model |
IMD IM400 (Vigilohm IM400) |
|
Monitoring System |
IT unearthed system (AC/DC/hybrid) |
|
Insulation Resistance Range |
10 Ω ~ 10 MΩ |
|
Insulation Resistance Accuracy |
±0.5% |
|
Leakage Capacitance Range |
0.1 μF ~ 500 μF |
|
Auxiliary Power Supply |
100~440 V AC/DC (±15%), 45~440 Hz |
|
Measured System Voltage |
Phase line: 0~480 V AC/DC; Neutral line: 0~830 V AC |
|
Power Consumption |
≤25 VA |
|
Response Time |
≤4 s |
|
Alarm Threshold |
Pre-alarm: 1 kΩ ~ 1 MΩ; Main alarm: 40 Ω ~ 500 kΩ |
|
Relay Output |
2×NO/NC, 250 V AC/6 A, 48 V DC/1 A |
|
Communication |
Standard: RS 485 (Modbus RTU); Optional: Ethernet |
|
Display |
Monochrome LCD, multi-language (including Chinese) |
|
Mounting |
Flush mounting, cut-out 112×148 mm |
|
Protection |
Front IP5X, rear IP20 |
|
Operating Temperature |
-25℃ ~ +70℃ |
|
Certifications |
CE, IEC 61557 8, Classification Society (optional) |

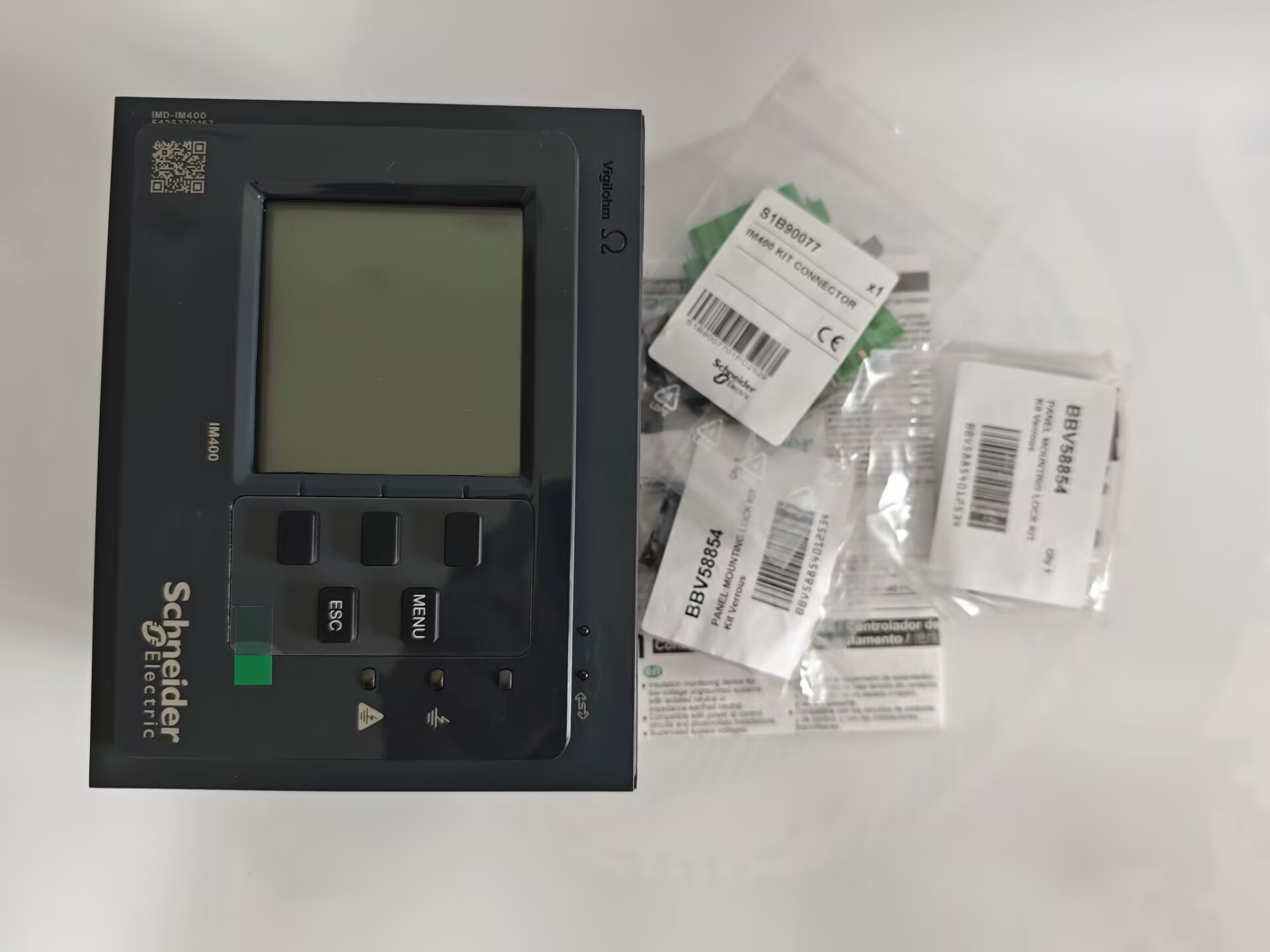

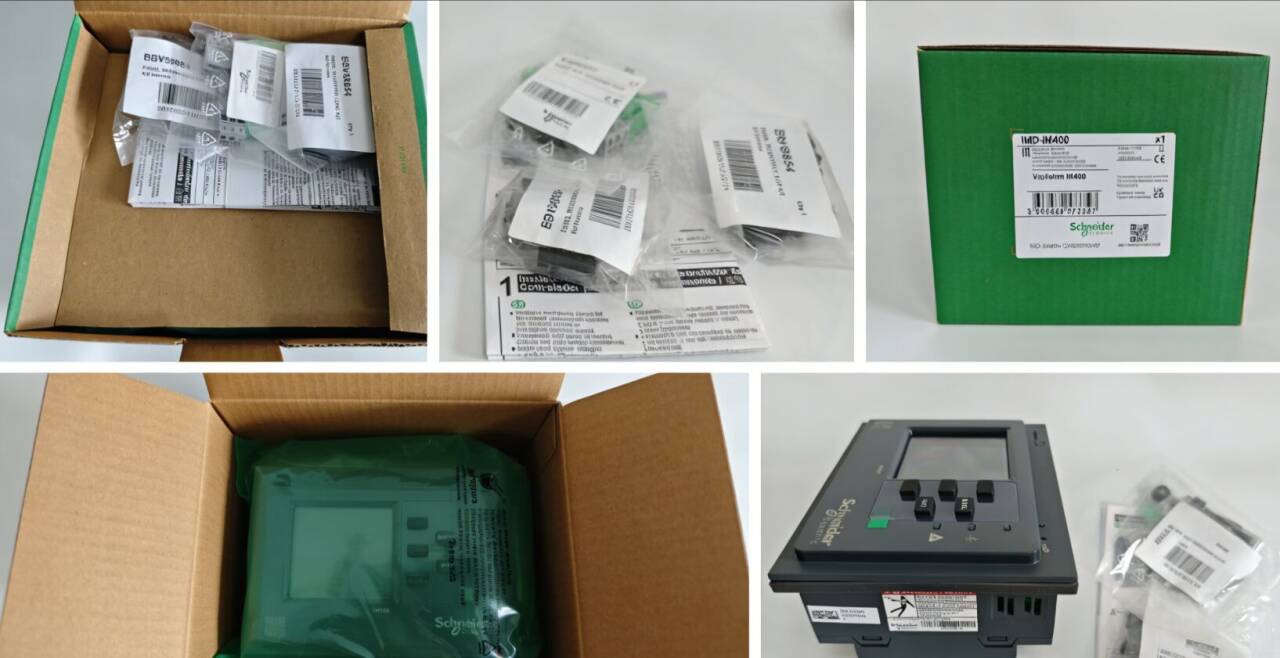

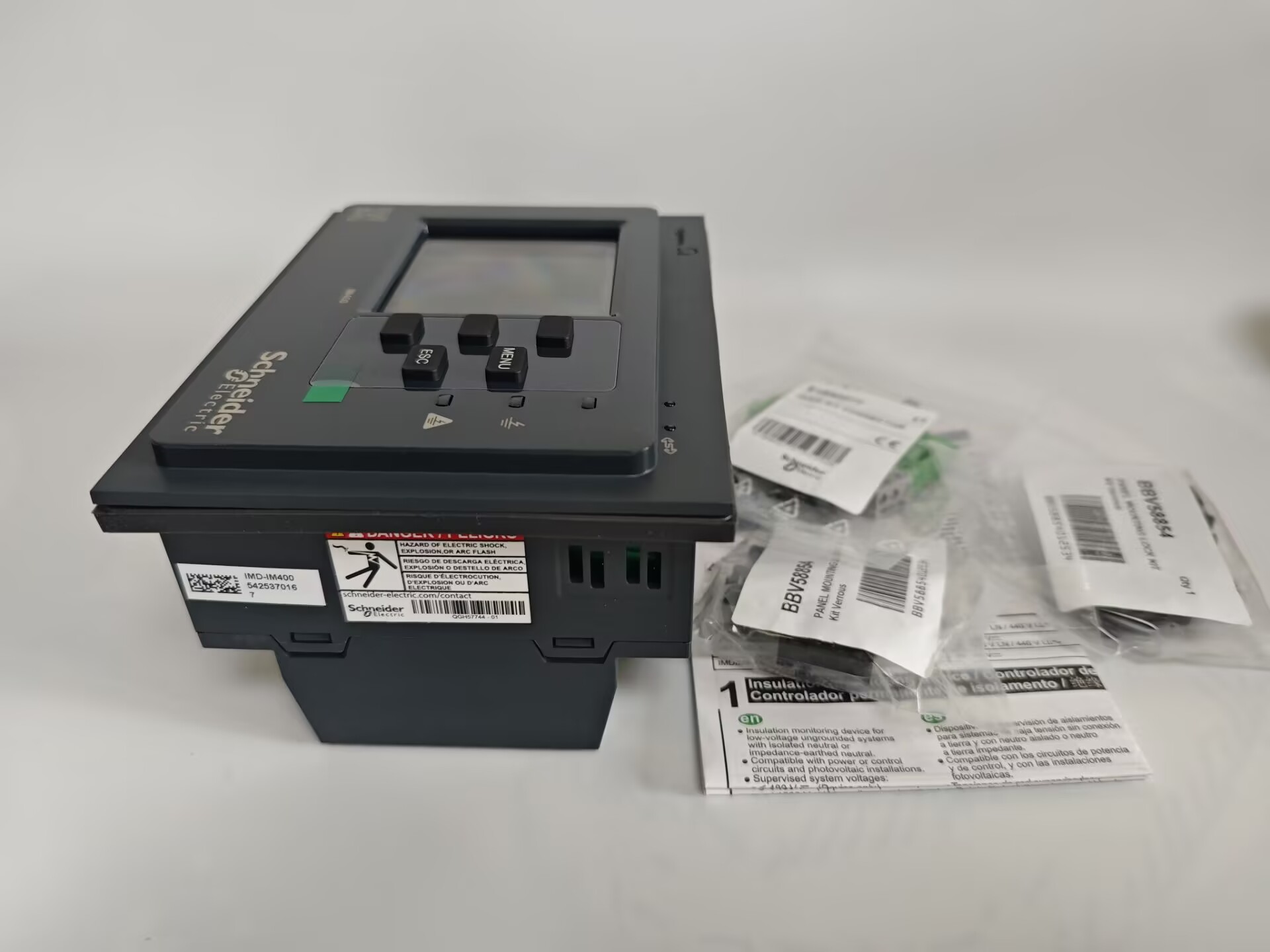

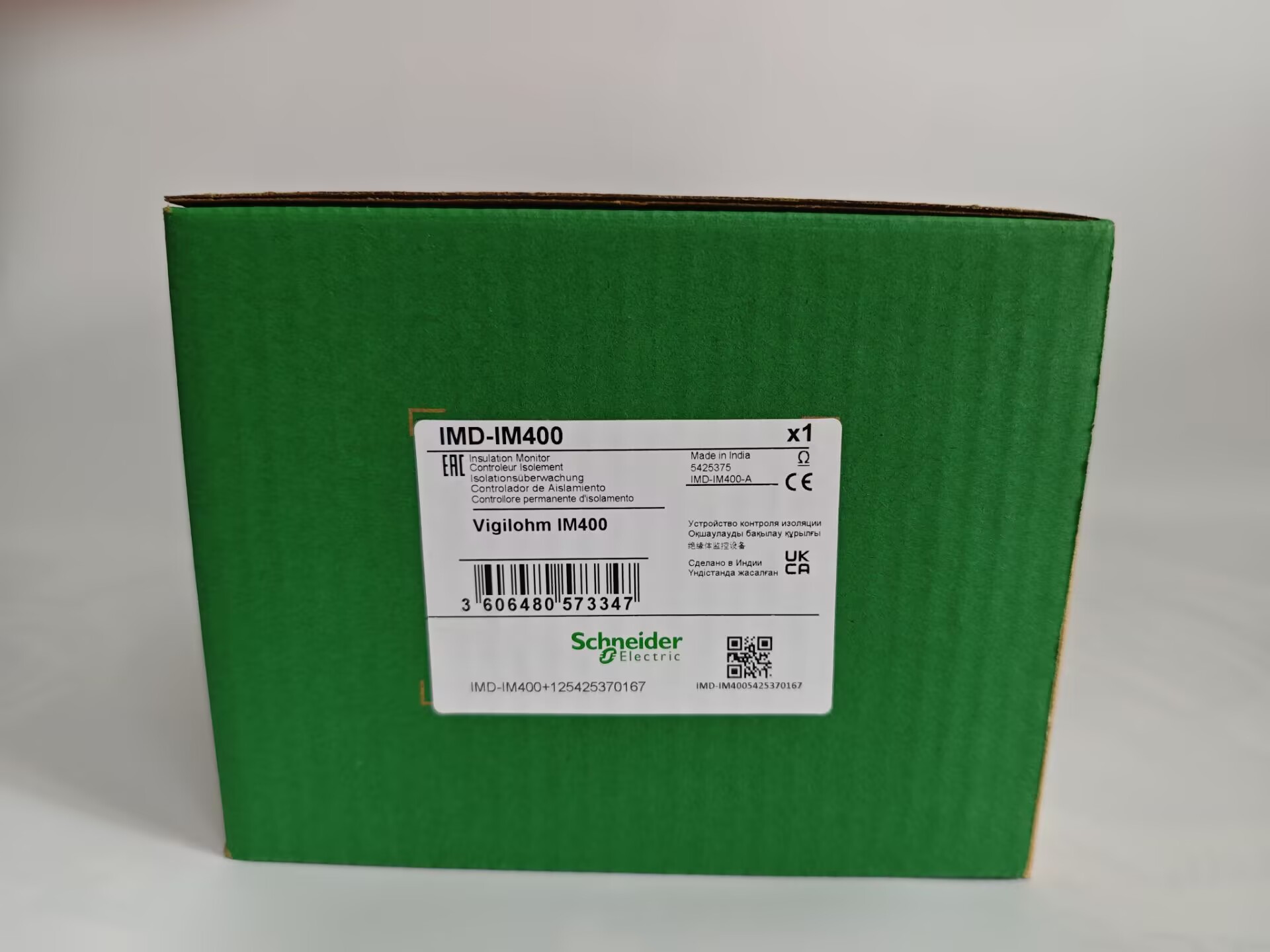

IMD-IM400 product real-life photo
