Introduction

The 751AM7I8BY0023 is a cutting-edge power management module designed to deliver precision control, high efficiency, and robust reliability for diverse applications.Engineered with advanced semiconductor technology, this module combines state-of-the-art components to optimize energy distribution in industrial systems,automotive electronics, and smart devices.

Features and benefits

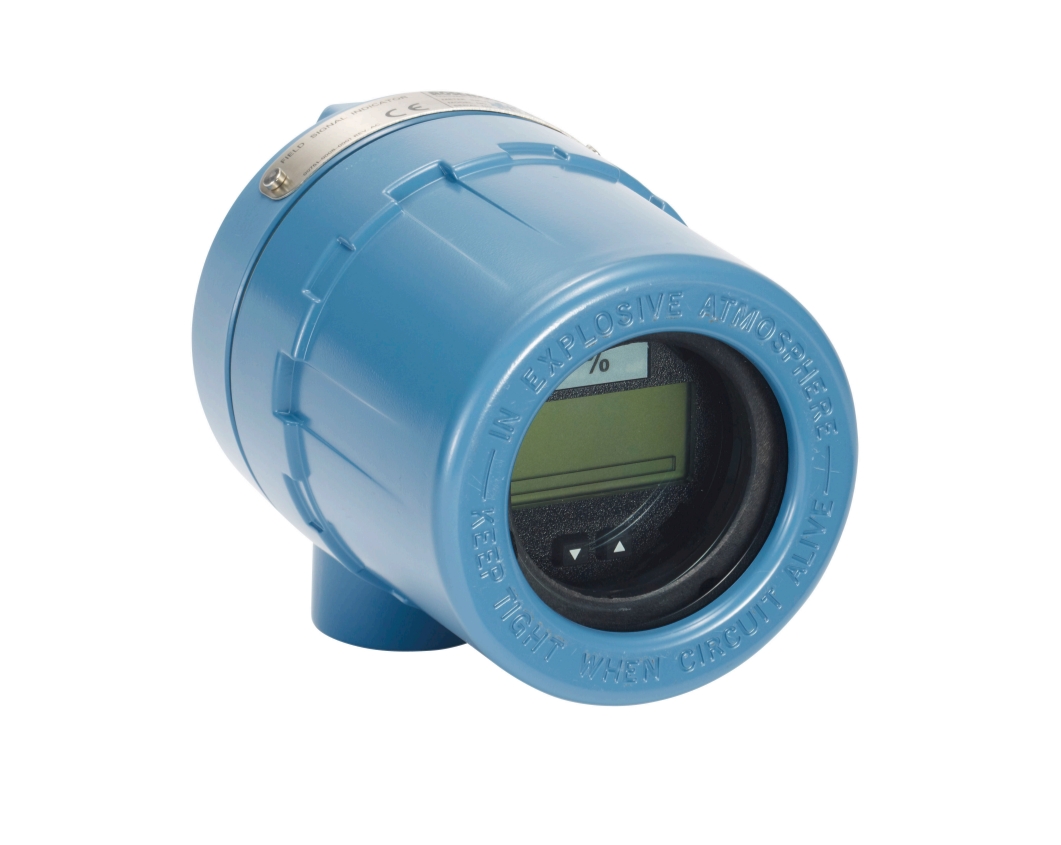

Rosemount 751 Field Signal Indicators are durable, configurable LCD devices designed to display critical process

variables from any two wire transmitter.

Transcend integral meter display with 751

751 Field Signal Indicators provide a means of displaying important process variables. These devices operate with any

two-wire transmitter that measures input variables such as pressure, flow, liquid level, or temperature. Rosemount

indicators are ideal for installations where an integral meter would be difficult to view.

Emerson designed 751 Indicators for use in industrial environments where all-weather performance is necessary.

These units are vibration and corrosion-resistant, and can be ordered with explosion-proof or Intrinsically Safe (IS)

certifications.

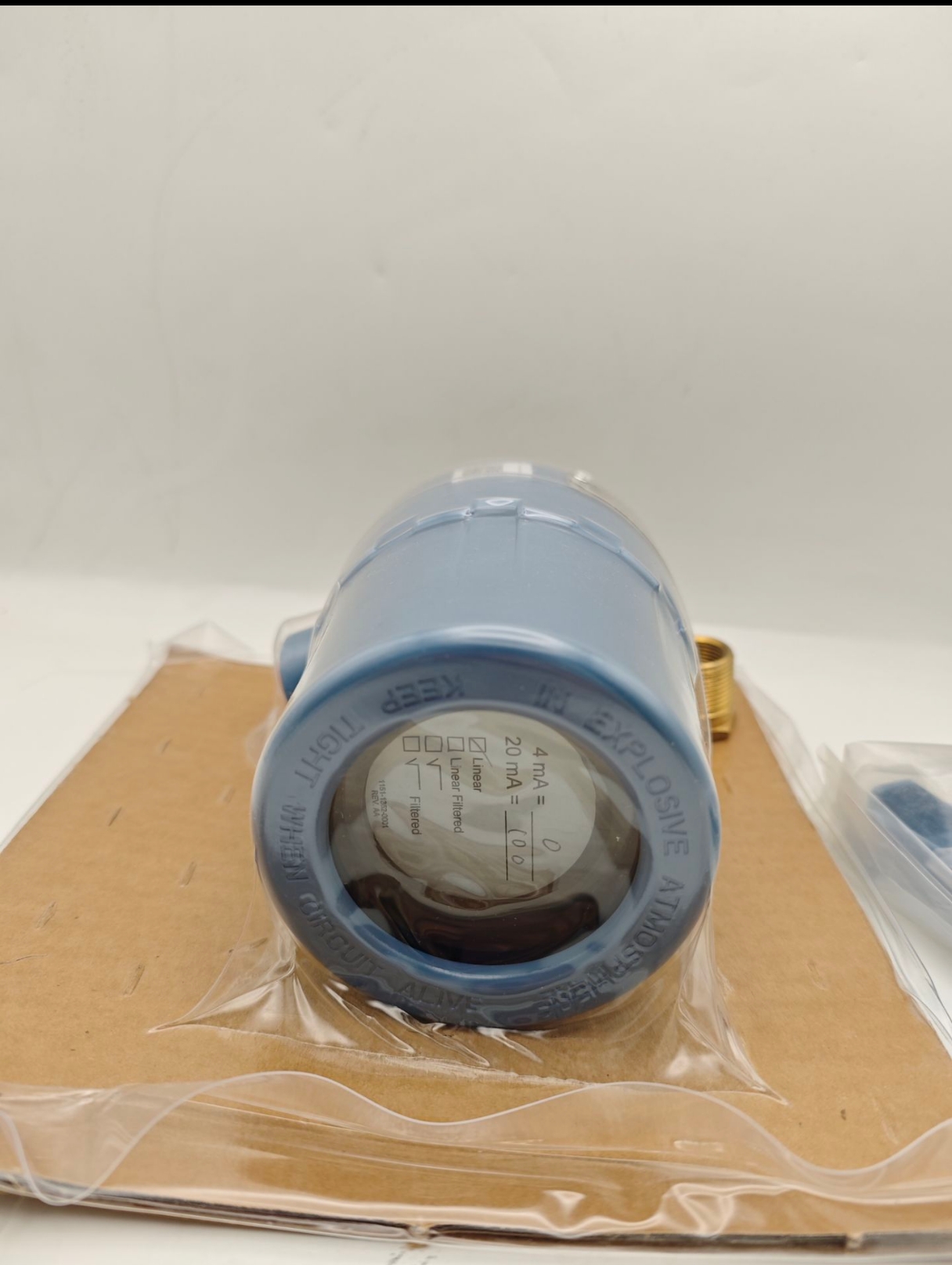

LCD display meter

You may configure the LCD display meter from a 4 mA point of –999 to a 20 mA point of 9999 with a linear or

square-root response. A 20-segment bar graph at the bottom of the display directly represents the 4–20 mA signal.

To change the 4 mA and 20 mA points, remove the housing and meter covers and press the meter faceplate buttons.

You can rotate the meter in 90-degree increments within the enclosure for convenient viewing.

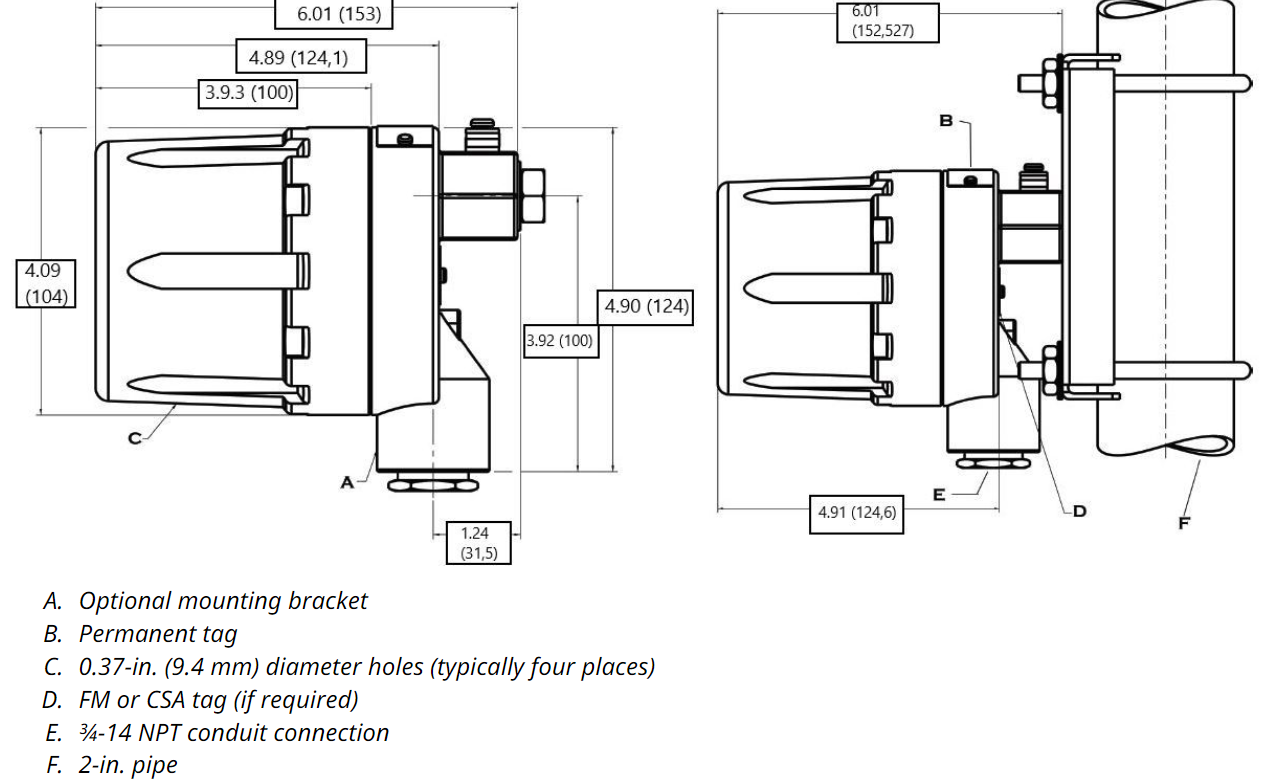

                                                                                                                      Dimensional drawings
