BIM-UNT-AP7X(TURCK)
TURCK BIM-UNT-AP7X
Product overview
TURCK BIM-UNT-AP7X is a magnetoresistive proximity sensor, specially designed for the position detection of various industrial cylinders. This sensor adopts a non-contact detection principle. By sensing the position changes of the piston magnetic ring in the cylinder, it achieves wear-free and high-precision position feedback.
Technical Data
Type
BIM-UNT-AP7X
ID
4685740
General data
Pass speed
≤ 10 m/s
Repeatability
≤ ± 0.1 mm
Temperature drift
≤ 0.1 mm
Hysteresis
≤ 1 mm
ELectrical data
Operating voltage UB
10…30 VDC
Ripple Uss
≤ 10 % UBmax
DC rated operating current Ie
≤ 100 mA
No-load current
≤ 10 mA
Residual current
≤ 0.1 mA
Isolation test voltage
0.5 kV
Short-circuit protection
no
Voltage drop at Ie
≤ 1.4 V
Wire break/reverse polarity protection
yes/yes (voltage supply)
Output function
3-wire, NO contact, PNP
Switching frequency
1 kHz
Mechanical data
Design
Rectangular,UNT
Dimensions
25x5x6mm
Housing material
Plastic, PP
Active area material
Plastic, PP
Tightening torque fixing screw
0.4Nm

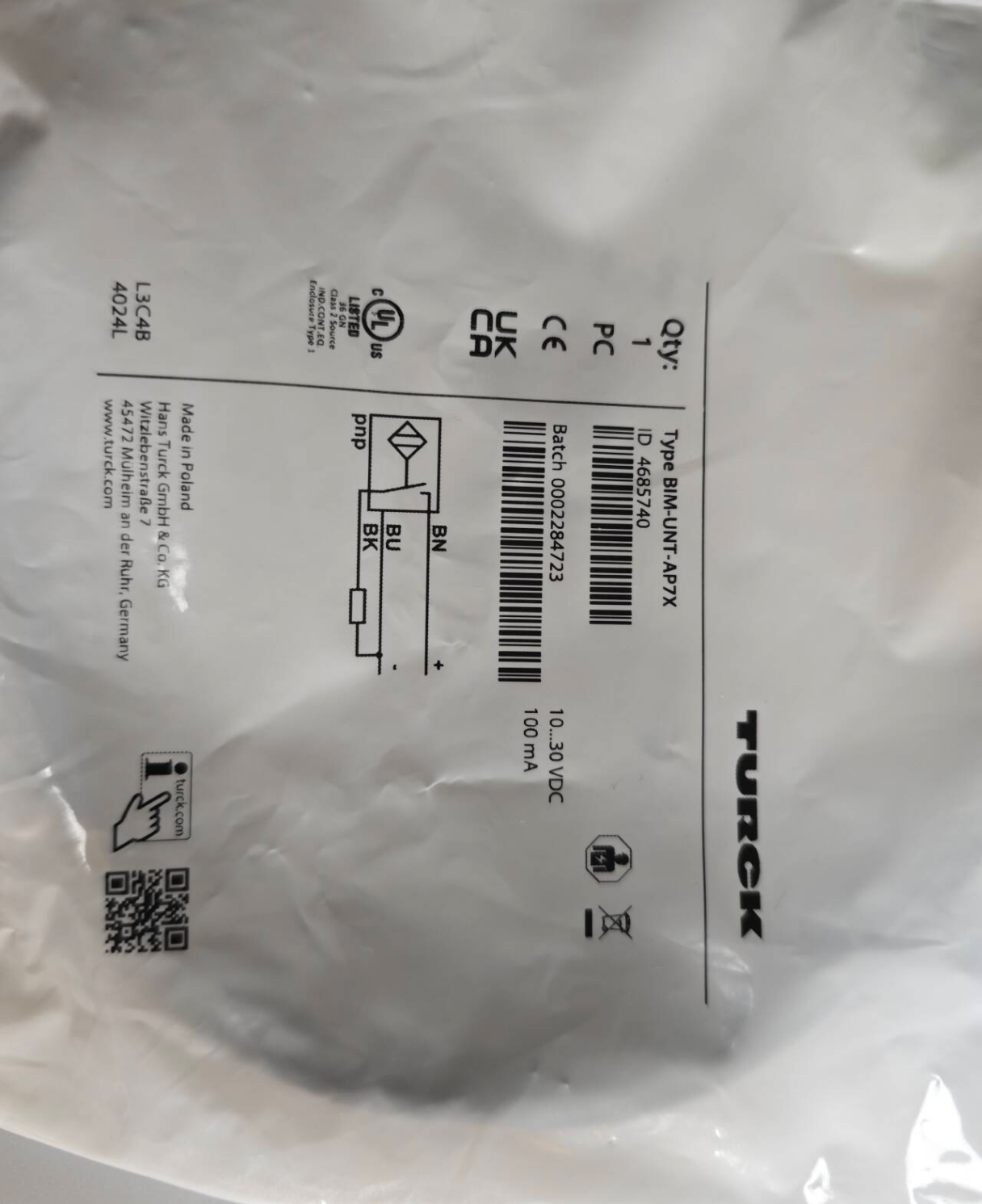

Eletrical connection
Cable
Cable quality
Ø 3 mm, Gray, Lif9Y-11Y, PUR, 2 m
Core cross-section
3 x 0.14 mm2
Environmental conditions
Ambient temperature
-25…+70 °C
Vibration resistance
55Hz(1mm)
Shock resistance
30g(11ms)
Protection class
IP68
MTTF
2283 years acc. to SN 29500 (Ed. 99) 40°C
Mounting on the following profiles
Cylindrical design
Switching state
LED, Yellow
Included in delivery
cable clip

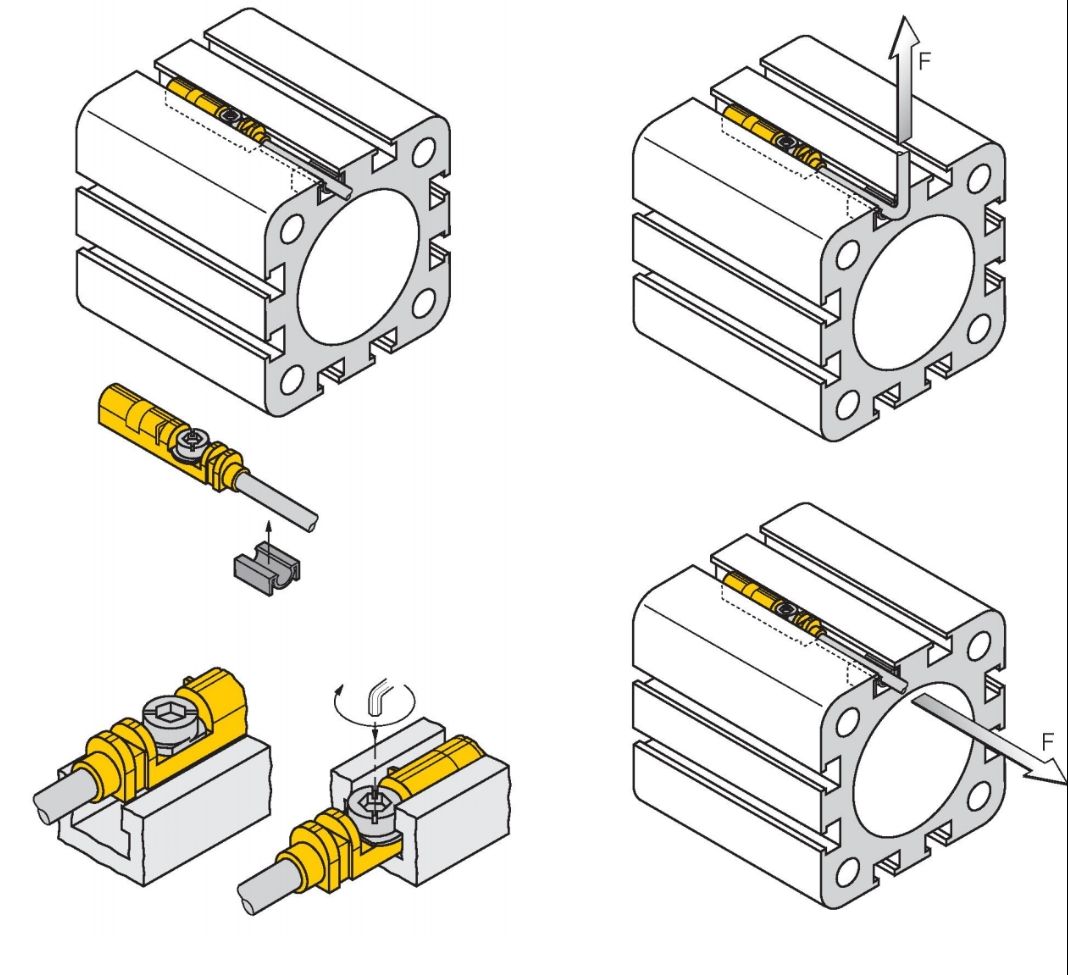

Mounting instructions
Thanks to the mounting lip, the sensor can be inserted into the groove from above with one hand. Mount the sensors as followsusing the patented wing screw: The wing screw and the female thread feature a lefthand thread. Two small plastic lips keep thescrew in position, ready-to-install. Turn thescrew clockwise. The screw moves out ofthe thread and hits the upper grooves withthe wings. The sensor is thus pressed downand locked in position. A few degrees up toapproximately 1.5 turns of the screw with a slotted screwdriver (blade width 0.5 mm) ora 1.5 mm Allen key are sufficient to ensure vibration-proof fastening, depending on theshape of the slot. A tightening torque of 0.4Nm is sufficient for safe mounting withoutdamaging the cylinder. The sensor can now withstand an axial and radial tensile load of F=100N applied on the cable. A cable clip is included in the scope of delivery. It enables smooth cable routing in the groove and ensures that the cable is fastened as securely as possible. The corresponding accessories for mounting on other cylindrical housings must be ordered separately.
Features
■For T-groove cylinders without mounting accessories
■Optional accessories for mounting on other
cylinder designs
■One-hand mounting possible
■Stable mounting
■Magneto-resistive sensor
■DC 3‐wire, 10…30 VDC
■NO contact, PNP output
■Cable connection
